Which Passive LCD Panels Are Supported by the Triscend Graphic LCD Development Kit?

The Triscend Graphic LCD Development Kit, shown in Figure 1, has pre-defined interface connectors supporting a variety of popular passive LCD display panels.  Table 1 lists the specific panels supported by the pre-defined connectors.

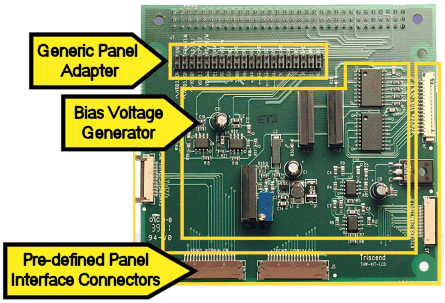

Figure 1.  The Triscend Graphic LCD Development Kit adapter board.

There is also a generic panel adapter that interfaces to a broad range of passive LCD panels, including both color and monochrome displays, and displays with 4-bit or 8-bit data interfaces.  The associated interface module available in the FastChip Development System allows you to interface to LCD panels with practically any pixel width or height, as long as two conditions are met.

1. The total pixel size—pixel width multiplied by pixel height—must not exceed 76,800 total pixels.  Consequently, the interface board and associated module support both portrait and landscape displays and odd-size displays such as 480x60.
2. There is sufficient system bandwidth to drive the specified number of colors and the desired refresh rate.  The Triscend E5 supports up to 256 colors on quarter VGA displays (240x320 or 320x240) and up to 70 Hz refresh rates.

Table 1.  Panels Supported by Triscend Graphic LCD Development Kit.

Vendor	Model	Resolution	Size	Type
Kyocera	KCS038AA1AJ-G21	240x320	3.8”	Transmissive color
	KCS038AA1AK-G21	240x320	3.8”	Transmissive color
	KRS038AA0AL-G25	240x320	3.8”	Reflective color
	KHS038AA1AJ-G83	240x320	3.8”	Transflective color
	KCS057QV1AJ-G32	320x240	5.7”	Transmissive color
	KHS057QV1AJ-G81	320x240	5.7”	Color
Seiko	Vitrium G4	320x240		B/W
	Vitrium G8	240x160		B/W
Samsung	UG-24U01-WGHT3-M	240x320		B/W
Others	Any passive LCD display, up to 76,800 total pixels.  Supported via general panel adapter interface.

FastChip Version: 2.3.0

This solution may or may not apply to other versions of the FastChip development system.

®
